Most people planning a dental implant know about the post and the crown but the implant abutment is the connector between them that holds everything together.

At Restoration Dental OC in Orange, CA, Dr. Ronald Pham walks you through every component so you know exactly what to expect before treatment begins.

What is a dental implant abutment?

A dental implant works as a 3 part system: the titanium fixture goes into your jawbone like a root, the crown is the visible tooth on top, and the implant abutment is the connector piece sitting between them.

Without it, the crown has nothing solid to attach to. The abutment stays just above the gum line and is hidden once the crown is placed all you see is the finished tooth.

Understanding this connector is the first step to understanding how your whole implant holds together.

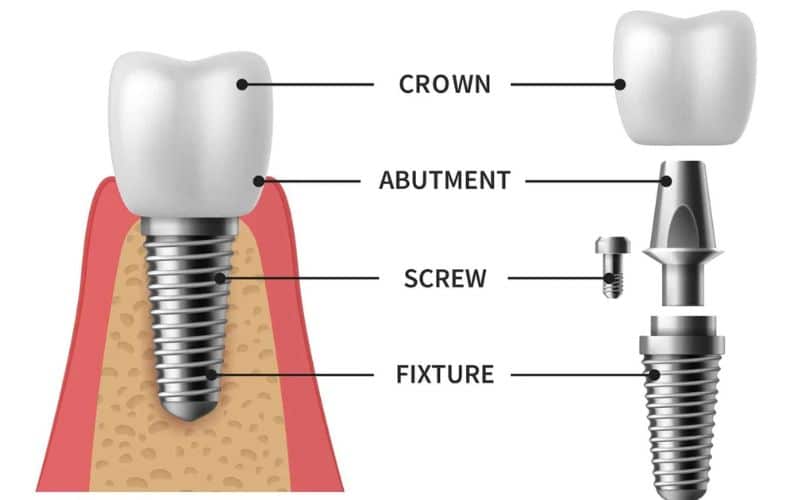

A dental implant is a 3 part integrated system: Fixture → Abutment → Crown.

Implant abutment structure and materials

Titanium abutments

Titanium abutments are the most widely used. Titanium is strong, lightweight, and highly biocompatible meaning your body accepts it without reaction.

This material works especially well for back teeth (molars and premolars) where biting force is high and aesthetics are less of a concern.

Zirconia abutments

Zirconia abutments are tooth colored, which makes them the preferred option for front teeth.

When the gum tissue is thin or slightly translucent, a gray titanium abutment could show through. A white zirconia piece keeps the final result looking completely natural.

PEEK and hybrid abutments

PEEK and hybrid abutments are newer options used in specific clinical situations.

They offer flexibility and are occasionally chosen when patients have metal sensitivities, though titanium and zirconia remain the most common choices by far.

Material choice connects directly to which type of abutment your dentist recommends and that decision depends on more than just looks, as the next section shows.

Implant abutment types

Standard (stock) abutments

Pre made in fixed shapes and sizes, these work well for most routine cases.

They keep the process simpler and more affordable a solid choice when your implant sits at a straightforward angle and the tooth is in the back of your mouth.

Custom abutments

When the tooth is visible when you smile, a custom fit matters more.

Your dentist takes a digital scan of your mouth, and the abutment is milled to match your exact gum contour and implant angle.

The result is a crown margin that looks and feels completely natural.

Screw retained abutments

Some patients prefer knowing the crown can come off cleanly if it ever needs to.

With this design, a small screw holds everything in place, no cutting through cement required if the dentist needs to remove or adjust the crown down the road.

Cement retained abutments

For cases where the gum line needs to look especially clean, dental adhesive creates a smooth, low profile connection between the abutment and crown.

The tradeoff is that any excess cement must be removed carefully during placement to keep the surrounding gum healthy.

Angled abutments

Bone doesn’t always allow a perfectly straight implant.

When the post goes in at a slight angle, an angled connector redirects the crown back into proper alignment so the finished tooth sits naturally in your bite without needing to redo the implant underneath.

Multi unit abutments

Replacing several teeth at once like with an All on 4 restoration requires a different approach.

Multiple posts share a single prosthesis, and these abutments provide the connection points that hold the full arch securely in place.

Once the type is selected, the actual placement process begins and knowing what to expect at each appointment makes the experience far less stressful.

The role of the abutment in implant crown placement

The abutment does more than hold the crown; it shapes the gum tissue around it, forming a natural collar called the emergence profile that mimics how a real tooth meets the gum line.

Height and angulation matter too: a poorly fitted abutment can create a crown that sits too high, too low, or puts uneven pressure on nearby teeth.

Over time, a precise fit also keeps the bone around the implant stable. That is why Dr. Pham at Restoration Dental OC treats every case individually and why the placement process below matters so much.

The abutment placement process at Restoration Dental OC

After the implant post is placed, the bone needs 3 to 6 months to fuse with the titanium surface, a process called osseointegration.

Once healing is confirmed, a minor procedure exposes the top of the implant and the abutment is attached.

Dr. Pham uses flapless protocols where appropriate, which means less tissue disruption and faster recovery. A healing abutment may be placed temporarily to shape the gum while it heals.

Once the tissue is ready, Dr. Ronald Pham, DDS, takes a digital scan and sends the measurements to the dental lab using only manufacturer matched components refined across more than 8 years of practice in Orange, CA.

The crown is then secured onto the abutment by screw or cement, the bite is checked, and the implant system is complete.

Digital scanning step before abutment crown fabrication at Restoration Dental OC

How to choose the right implant abutment

No single abutment fits every patient; the right choice depends on tooth location, gum thickness, implant angle, and crown material.

For front teeth, a custom zirconia abutment with a cement retained crown produces the most natural looking gum line. For back teeth, a stock titanium abutment with screw retention handles bite load reliably.

Brand compatibility matters too: using an off brand part with a name brand fixture can cause micro movement or early failure, which is why Dr. Pham uses only original, brand matched parts at Restoration Dental OC.

Cost varies depending on whether the abutment is stock or custom made. Your consultation covers all options and pricing upfront so there are no surprises before treatment starts.

Frequently asked questions about implant abutments

What is a dental implant abutment?

A dental implant abutment is the connector piece between the implant post in your jawbone and the crown above your gum.

It is the middle component that makes the whole implant function as a complete tooth.

Is the abutment placed at the same time as the implant?

In most cases, no abutment is placed after the implant has fully fused with the bone, typically 3 to 6 months later.

Some protocols place a temporary healing abutment right away to begin shaping the gum tissue.

What is an implant abutment crown?

An implant abutment crown refers to the visible tooth shaped cap that sits on top of the abutment.

The abutment provides the base, and the crown restores the appearance and function of the missing tooth.

What are the most common implant abutment types?

Standard and custom abutments are the 2 main categories, and each comes in screw retained or cement retained designs.

Your dentist will select the right combination based on the tooth location, gum depth, and implant angle.

How long does an abutment last?

A titanium or zirconia abutment is designed to last the lifetime of the implant often 15 to 25 years or more with proper care.

Routine checkups help confirm the abutment stays secure and the surrounding tissue remains healthy.

Can a dental implant abutment be replaced?

Yes, if the abutment is damaged or the crown needs to be updated, it can often be replaced without removing the implant fixture underneath.

Screw retained designs make this process especially straightforward.

Does abutment placement hurt?

The procedure is minor and performed with local anesthesia, so most patients feel little to no pain during the appointment.

Mild soreness for 1 to 2 days afterward is normal and most patients get through it comfortably with over the counter pain relief.

What is the difference between a standard and a custom abutment?

A standard abutment is prefabricated and suits straightforward cases well, while a custom abutment is individually designed to match your exact anatomy.

Custom options are especially recommended for front teeth where gum shape and crown margins are visible when you smile.
